China Manufacturer for Street Light Lampost Fixture - 100W 200W 300W smart city led street lighting – Hongzhun Detail:
Item No | HZ-T-012 100w | HZ-T-012 150W | HZ-T-012 200w | HZ-T-012 240w | HZ-T-012 300w |
Dimension L*W*H(mm) | 422*318*138 | 522*318*138 | 600*318*138 | 600*318*138 | 853*318*138 |
Installation Height | 8-10M | 8-10M | 10-12M | 12-15M | 15-18M |
Luminous flux | 》120LM | 》120LM | 》120LM | 》120LM | 》120LM |
LED Type | SMD3030 | SMD3030 | SMD3030 | SMD3030 | SMD3030 |
LEDs qty | 96pcs | 150pcs | 192pcs | 256PCS | 320pcs |
LED Driver | PH ,MEANWELL | PH , MEANWELL | PH , Meanwell | PH , Meanwell | PH , Meanwell |
Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
body | |||||
Install pole diameter | 60mm | 60mm | 60mm | 60mm | 60mm |
Beam angle | 140*90° | 140*90° | 140*90° | 140*90° | 140*90° |
Power factor | >0.98 | >0.98 | >0.98 | >0.98 | >0.98 |
CRI | >80 | >80 | >80 | >80 | >80 |
Lifetime | 50000hrs | 50000hrs | 50000hrs | 50000hrs | 50000hrs |
Dimming | yes | yes | yes | yes | yes |
Dimming Method | PWM or Time interval | PWM or Time interval | PWM or Time interval | PWM or Time interval | PWM or Time interval |
Available Phtocell | Yes | yes | yes | yes | yes |
Lightning protection device | SPD 10KV | SPD 10KV | SPD 10KV | SPD 10KV | SPD 10KV |
Waterproof | IP66 | IP66 | IP66 | IP66 | IP66 |
Color | 3000-6000K | 3000-6000K | 3000-6000k | 3000-6000k | 3000-6000k |
Warranty | 3-5years | 3-5years | 3-5years | 3-5years | 3-5years |
Ceritifcates | CE, ROHS | CE, ROHS , | CE , ROHS | CE , ROHS | CE , ROHS |
SASO,UL driver | SASO , UL DRIVER | SASO , UL driver | SASO , UL driver | SASO , UL driver | |
Working temperature | -30degree | -30degree | -30degree | -30degree | -30degree |
~65degee | ~65degree | ~65degree | ~65degree | ~65degree |
【LED Chips】Customized SMD 3030 chip,High brightness illumination wide lumens high
【DIE-CAST ALUMINUM HOUSING】Die-cast aluminum lamp housing,anodizing treatment on surface, corrision-proof and no fade.
【SWITCH LAMP BOX】Tool-free maintenance on the pole for driver box.
【3 Years Warranty】If you have any questions when using our led street light, please contact us first. We will reply with in 24 hours.

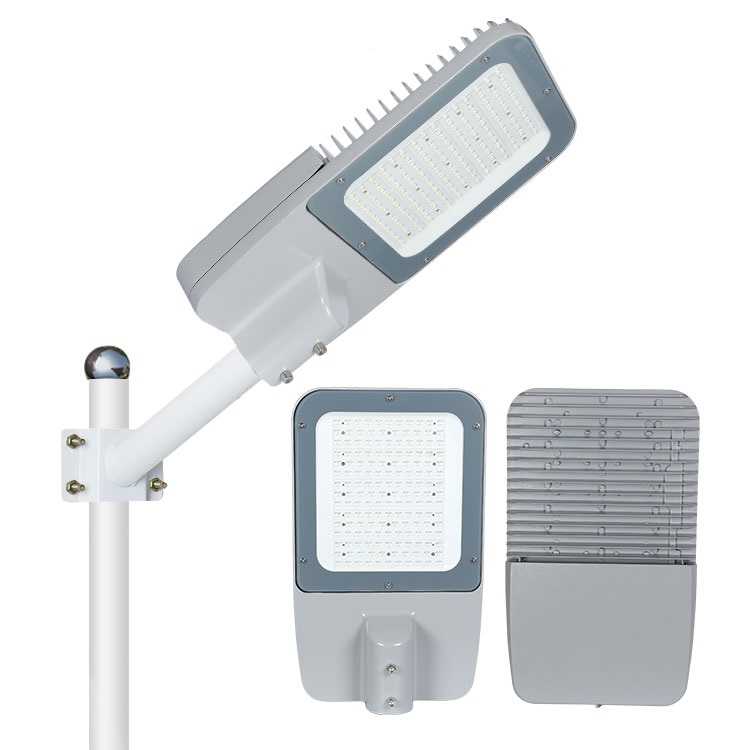

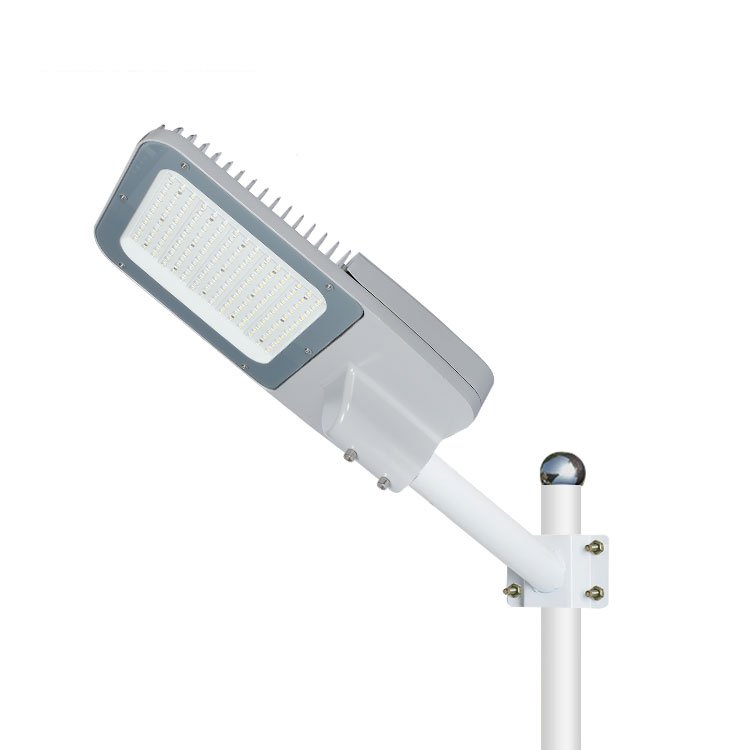

Product detail pictures:
