Die-casting aluminum housing led street light 120w

Short Description:


  • ITEM NO: HZ-LD-0809
  • PRODUCT TYPE: LED STREET LIGHT
  • POWER: 120W
  • INSTALLATION HEIGHT: 10M
  • LIGHT EFFICIENCY: 110
  • AVAILABLE COLOR: GREY,BLACK
  • LAMP SIZE: 691*305*134MM
  • LIGHT SOURCE: SMD 3030
  • IP RATING: IP65
  • CERTIFICATE: CE,ROSHS,EMC,LVD
  • WARRANTY: 3 YEARS
  • Product Detail

    Product Tags

    Item No HZ-LD0809  120W
    Dimension L*W*H(mm)  691x305x134 mm
    Installation Height 10M
    Power 120w
    Luminous flux 13200lm
    Light efficiency 110lm/w
    Light source SMD3030
    Material High quality die-casting aluminum alloy
    Light degradation rate 25000h<30%
    CRI >75
    Power factor PFC>0.95
    lifetime >50000hrs
    Color temperature 3000-7000K
    Working temperature -30~ +50°C
    Input voltage AC85-265V  DC12/24V
    Beam angle Transverse 150 ° Longitudinal 75 °
    IP Rate IP65
    Warranty 3years
    Certificates CE, ROHS , EMC , LVD
    Application Road , parking ,garden , courtyard , outdoor , ect
    Available color Grey ,black

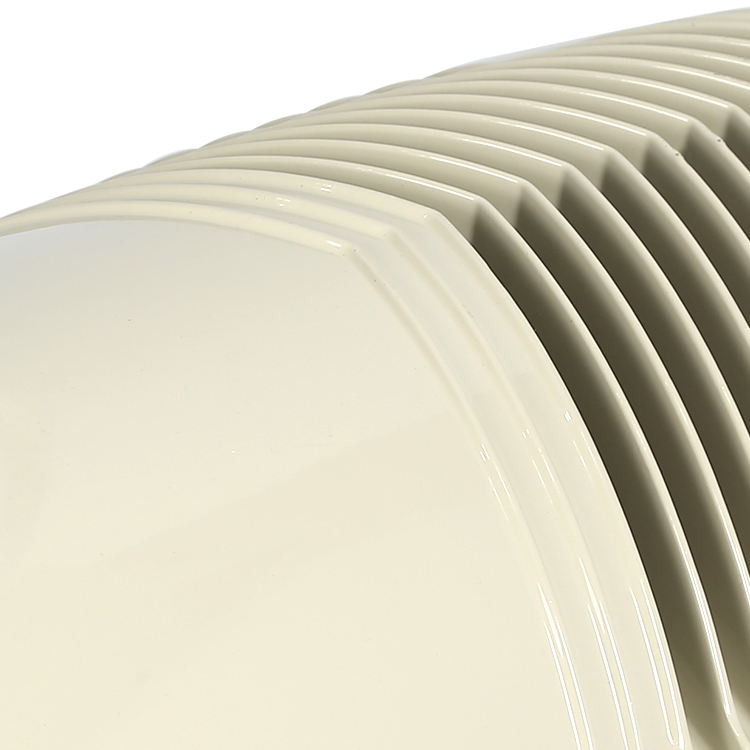

    【STRONG HEAT DISSIPATION】Aluminum heat dissipation design is adopt-ed to effectively solve the heat dissipationproblem and ensure the lamps to be usedfor a long time.

    【CONSTANT CURRENT DRIVER】The drive is designed with an integral seal and silicone infusion to effectively handlethe harsh outdoor environment.

    【ADJUSTABLE ANGLE】The angle of the lamp arm can be adjusted to meet your different lighting needs and be firmly fixed.

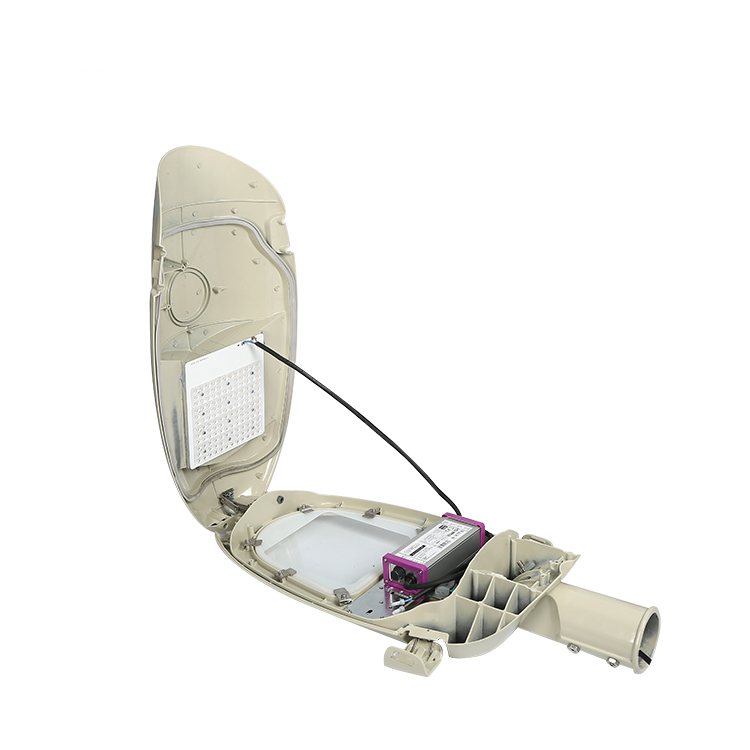

    【OPEN THE LAMP BODY】lt is convenient to replace the power supply drive , and has strong sealing performance.

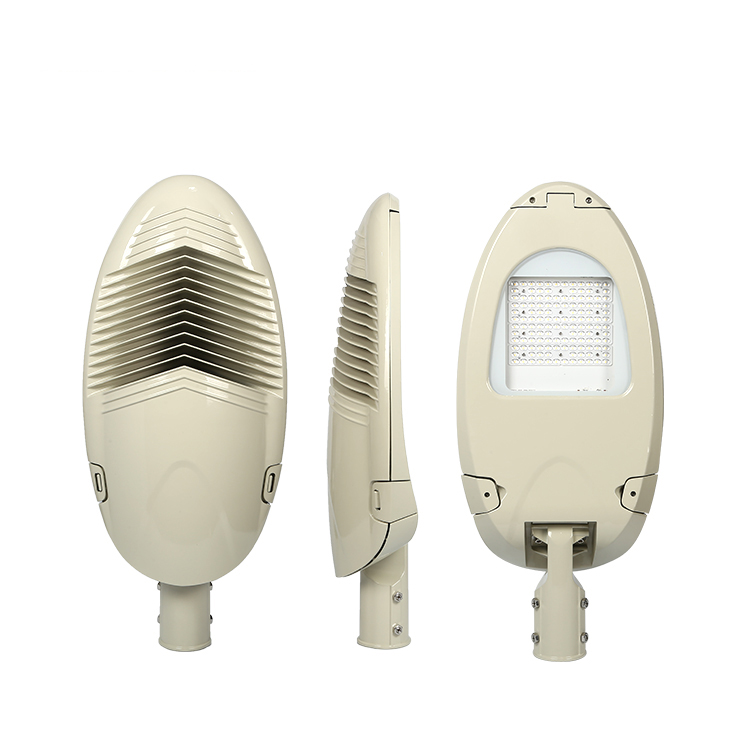

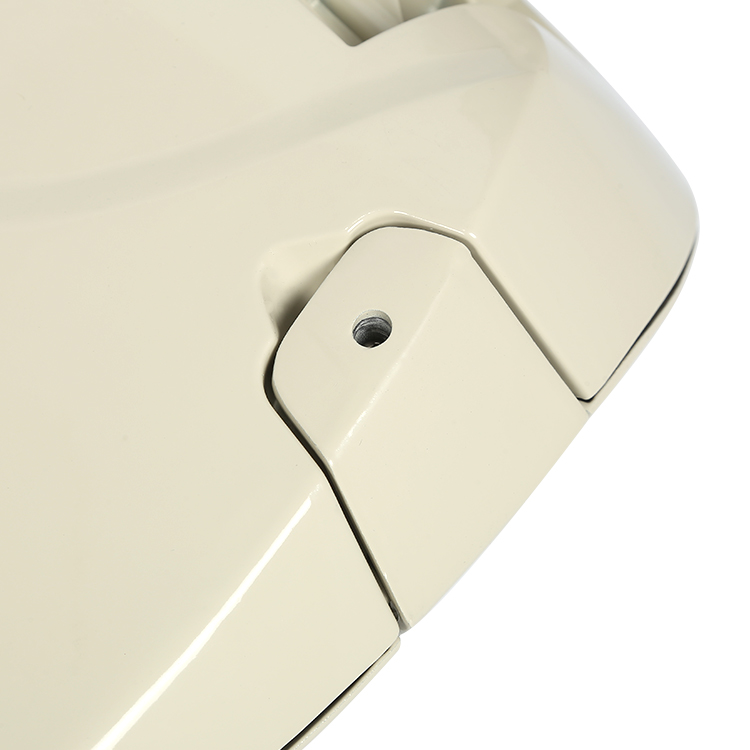

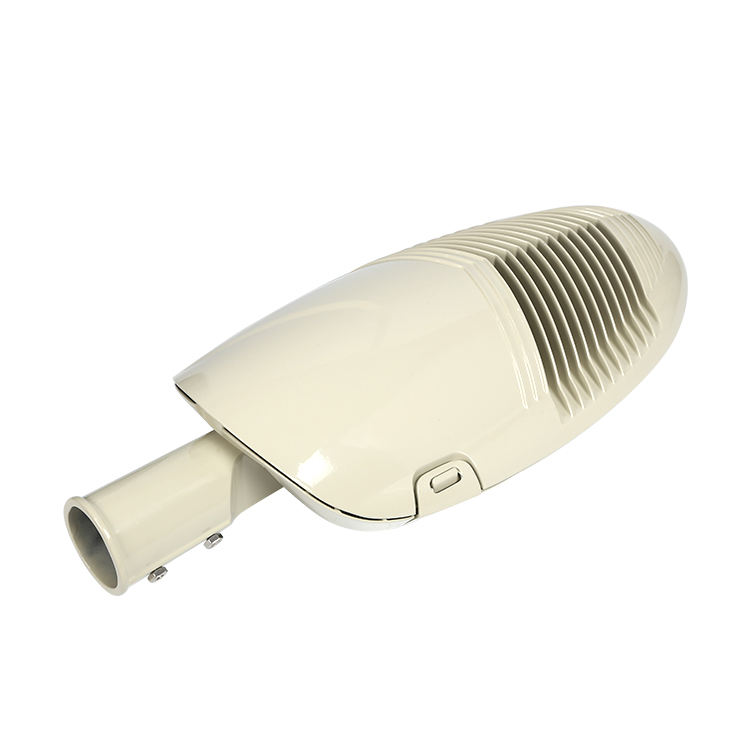

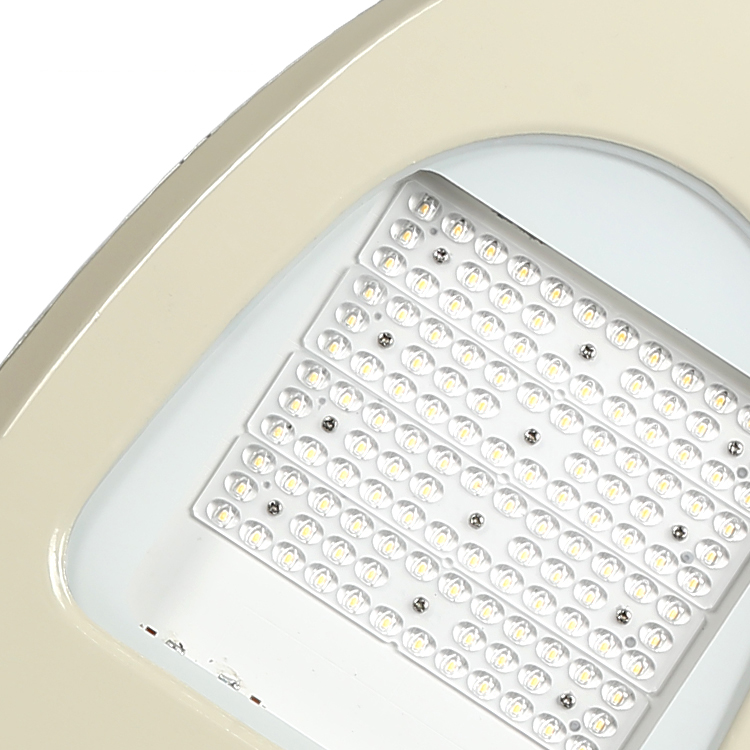

    Die-casting aluminum housing led street light 120w (1) Die-casting aluminum housing led street light 120w (2) Die-casting aluminum housing led street light 120w (3) Die-casting aluminum housing led street light 120w (4) Die-casting aluminum housing led street light 120w (5) Die-casting aluminum housing led street light 120w (6) Die-casting aluminum housing led street light 120w (7)
