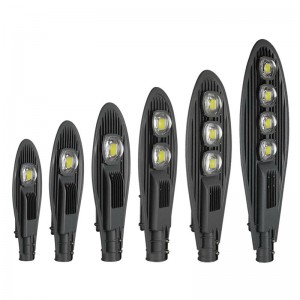

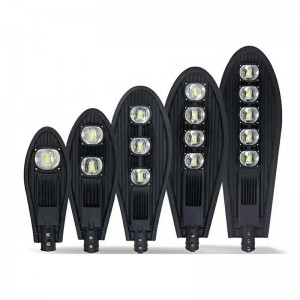

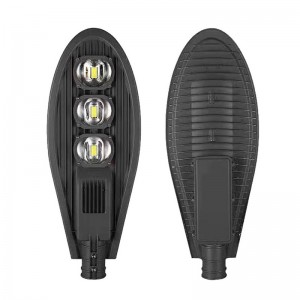

High Quality IP65 Waterproof 30W 50W 100W 150W 200W LED Street Light
Specification
| Item No | HZ-T-009-30W | HZ-T-009-50W | HZ-T-009-70W | HZ-T-009-100W | HZ-T-009-150W | HZ-T-009-200W |
| Dimension L*W*H(mm) | 410*170*60 | 495*200*60 | 640*245*70 | 720*275*70 | 900*345*80 | 950*350*90mm |
| LEDs QTY | 1PC | 1PC | 1PC | 2PCS | 3PCS | 4PCS |
| Installation Height | 4M | 4-6M | 6-8M | 8-10M | 10-12M | 12-15M |
| Power | 30W | 50W | 70W | 100W | 150W | 200W |
| Luminous flux | 3300lm | 5500lm | 7700lm | 11000lm | 16500lm | 22000LM |
| Light efficiency | 110lm/w | |||||
| Light source | SMD Brideglux ,Epistar, Edison | |||||
| LED driver | CE Driver , Meanwell | |||||
| Material | High quality die-casting aluminum alloy | |||||
| Light degradation rate | 25000h<30% | |||||
| CRI | >75 | |||||
| Power factor | PFC>0.95 | |||||
| lifetime | >50000hrs | |||||
| Color temperature | 3000-7000K | |||||
| Working temperature | -30~ +50°C | |||||
| Input voltage | AC85-265V DC12/24V | |||||
| Beam angle | Transverse 150 ° Longitudinal 75 ° | |||||
| IP Rate | IP65 | |||||
| Warranty | 3years | |||||
| Certificates | CE, ROHS , EMC , LVD | |||||
| Application | Road , parking ,garden , courtyard , outdoor , ect | |||||
| Available color | Grey ,black ,Dark Gray | |||||

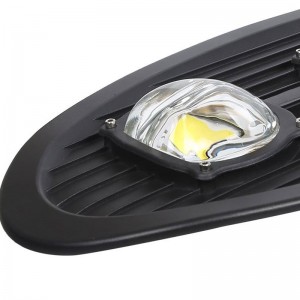

【Tempered Glass Mask】When the glass is damaged by external force, the fragments will become honeycomb-like obtuse-angled small particles, which are not easy to cause serious harm to the human body.

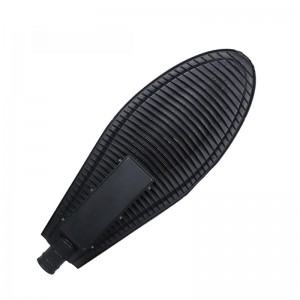

【Radiator】Die casting aluminum heat dissipation,increase heat convection,not fade, rust / corrosion, effectively reducethe light attenuation.
【Stainless Steel Screw】Use stainless steel screws, no rust,good stability and beautiful appearance.
【Standard light pole interface】The universal standard light poleinterface makes installation andmaintenance more convenient.
【Product packaging】Embedded foam, impact resistance, reduce transportation risks,and effectively protect goods
